Description

SPLIT BOARD / POWDER + RESORT / DIRECTIONAL / HYBRID CAMBER

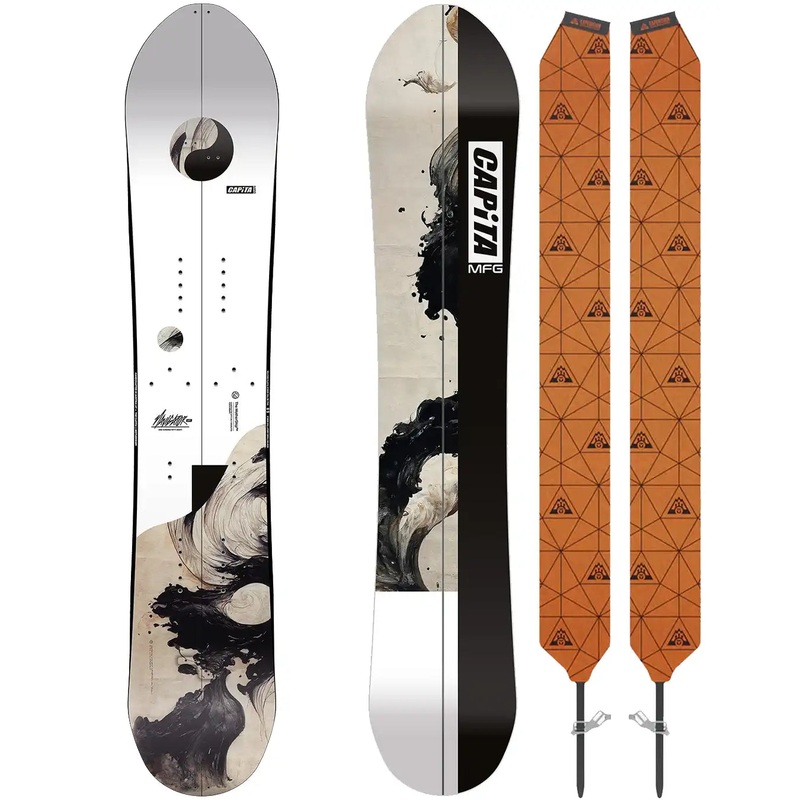

The Navigator, known as a powder-annihilating favorite of the CAPiTA collection is again available in a factory-direct split. This side-country slayer will help unlock worlds of new terrain out of bounds or access a skin up your favorite resort line when uphill travel is allowed. This series provides lightweight, controlled ascents with camber underfoot, and endless float and smooth turns on the descent thanks to its sinking tapered tail and parabolic sidecut. The Navigator Split is a value-drive tool for unlocking endless pow stashes and epic-level experiences.

This series combines incredible performance with its Ascend 2 Split Core, Technora Flax Boosters and a new HyperDrive base while its value is unmatched as it comes factory direct with Union Expedition Skins by Montana and Union Pro Clips and Hooks.

Details

Rocker Type: Resort V2 Directional: Raised camber platform through the inserts with elevated contact points for better float in powder and Flat Kick tip and tail arcs for faster and more aggressive transitions.

Flex: 6/10.

Shape: Directional 0.8″ Setback, Parabolic Radial Tape, Parabolic Radial Tape

Core: 3D Ascend 2 Split Core

Laminates: Holysheet Tri/Tri Fiberglass, Magic Bean Resin, 2 x 30mm Technora Flax Boosters

Sidewalls: Full ABS1000

Base: HYPERDRIVE Base | Die-cut + Digital Print

Edges: 360 HRC48 Steel Edges

Topsheet: Digital Print + Metallic Underlay

Binding Compatibility: Stainless Steel 2 x 4 Inserts, Standard Splitboard pattern

Additional Features: Included Union Expedition Skins by Montana, Union Pro Clips and Hooks

Specs

• Terrain: Splitboarding
• Ability Level: Intermediate-Advanced
• Rocker Type: Rocker/Camber/Rocker
• Shape: Directional
• Warranty: 2 Years

Size Chart

Size

154

158

161

164

Effective Edge (mm)

1182

1195

1222

1238

Tip Width (mm)

301

305

310

315

Waist Width (mm)

252

256

260

264

Tail Width (mm)

290

293

297

301

Sidecut Radius (m)

8.0 / 6.8 / 8.0

8.1 / 7.0 / 8.1

8.3 / 7.2 / 8.3

8.5 / 7.4 / 8.5

Stance Setback (in)

0.8

0.8

0.8

0.8

Stance Range (in)

21

22

23

23

Stance Range (mm)

533

539

584

584

Rider Weight (lbs)

130 – 190

150 – 200

160 – 210

170 – 220

Width

Regular

Regular

Regular

Regular
